New condition and chemical industry salt dewatering centrifuge two stage pusher centrifuge
Description

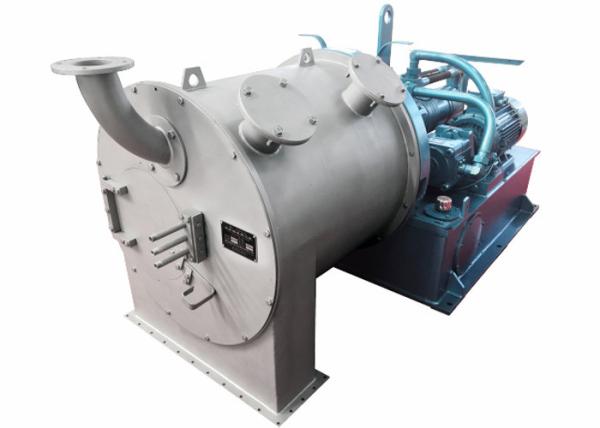

PP Series horizontal pusher centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.
Specification
| Item | HR400-N | HR500-N | HR630-N | HR800-N | HR1000-N |
| Inner/Outside basket diameter(mm) | 337/400 | 410/500 | 560/630 | 720/800 | 920/1000 |
| Length of filtering(mm) (Inner/Outside basket) | 160/160 | 180/180 | 240/240 | 300/300 | 240/320 |
| Inner/Outside basket Speed(r/min) | 1500-2200 | 1200-2000 | 1000-1800 | 800-1600 | 650-1250 |
| Separating factor | 503-1083 | 402-1118 | 352-1140 | 286-1145 | 236-875 |
Feature
1. Continuous operation, large production capacity and stable operation.
2. The separation factor is high, the material can be fully dehydrated in the primary and secondary drums, and the moisture content of the filter cake is very low.
3. When the purity of the solid product is required, it can be effectively washed, and the washing liquid and mother liquor can be discharged separately.
4. Low power consumption.
Application
Pusher centrifuges are suitable for separating the suspension with solid particle size of more than 0.08mm, with the concentration rate of over 40%, and suitable for chemical industry, fertilizer, salt and alkali production.
