Customized Stainless Steel Fiber Laser Welded Heat Exchange Pillow Plate
What is pillow plate?
Pillow Plate is in 2types: single and double embossed, welded with fiber laser, to produce a pillow plate product there is no big difference between single and double embossed pillowplates, the application area's from single and double embossed platen different.
The pillow plates will be welded with filber laser.
1. Double embossed pillow plate:

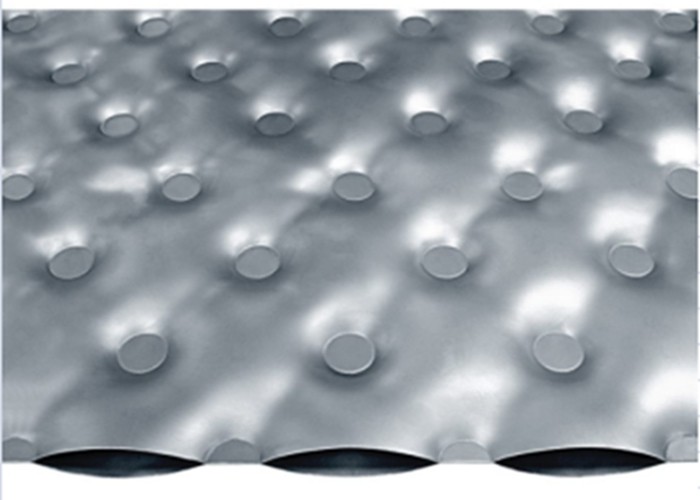

Pillow plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equaly inflated pillows is caled "doulbe embossed pillow plate"
2. Single embossed pillow plate:
Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform, so a pillow plate where the thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is caled a single embossed pillowplate
What is processing?
Rolled Plate → Spread → Laser welding → Embossed → Finished
What is technical overview?
| Product Name | Pillow plate |
| Material | Stainless Steel |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| Grade | SUS201,SUS304,SUS316,TA2,Hastelloy |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
| Thickness of two sheets |
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
What is advantage?
- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production
- Investment with short pay-back period
- Low maintenance cost
- Compact design and simple installation
- Good thermal operating efficiency due to high heat transfer coefficients
- Heat recovery with constant condensation

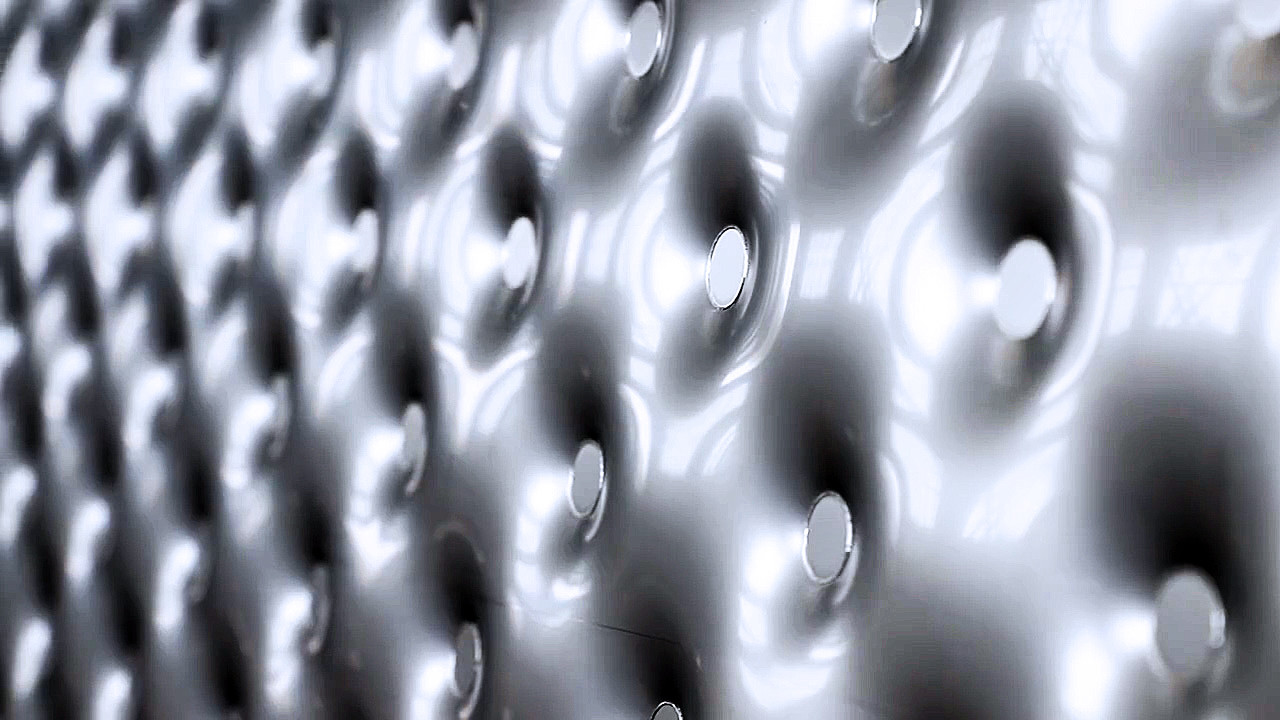

What is picture?
Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!
