Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown, open the case and cover, hanging out outside the machine to discharge discharge locations; with washing pipe materials can be washed.
Start with frequency converter for stepless speed regulation, the time of rotating can be set and controled with a PLC (programmable logic controller) to start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary control panel can operate both to improve safety sex, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolating types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.
PPSBD series centrifuges have a prefect automatic performance and a large processing capacity.In accordance with users' demand,procedures such as feeding, separating,washing,dehydrating and discharging can all be automatically finished followed by remote control.It's suitable for solid liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example:
1) Chemical Industry:gypsum,ammonium sulphide,bluestone,potassium chloride,borax, dyestuff,resin,pesticide.
2) Pharmaceutical Industry:salt,monosodium glutamate,food additive,starch,sugar,flavoring, antibiotic,vitamin.
3) Food Industry:sodium glutamate.
4) Mine and Metallurgy Industry:copper,zinc,minerals,and metal refining.
5) Environmental Protection Industry:pure water sludge and sewage sludge
Technical parameters
| Model/Item | Basket diameter(mm) | Basket Height(mm) | Basket volume(L) | Loading Capacity(kg) |
| PPSBD60S | 600 | 350 | 45 | 60 |
| PPSBD135S | 800 | 400 | 100 | 135 |
| PPSBD180S | 1000 | 420 | 140 | 180 |
| PPSBD250S | 1000 | 580 | 190 | 250 |
| PPSBD320S | 1200 | 500 | 260 | 320 |
| PPSBD400/520S | 1250 | 500/630 | 310/400 | 400/520 |
| PPSBD650S | 1250 | 800 | 505 | 650 |
Structure

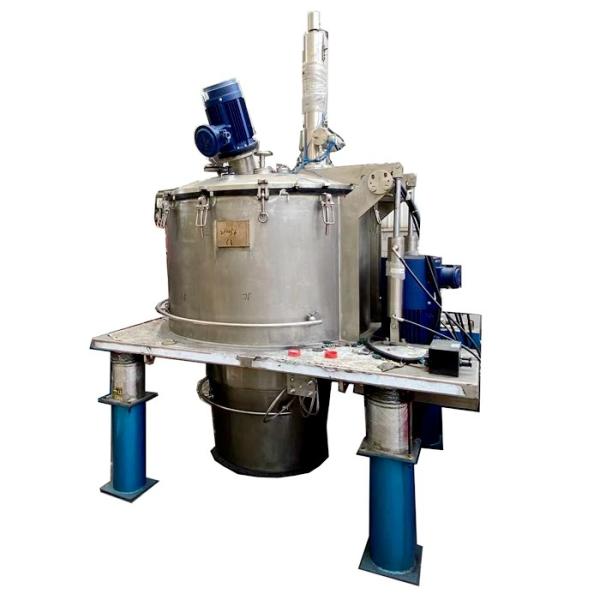

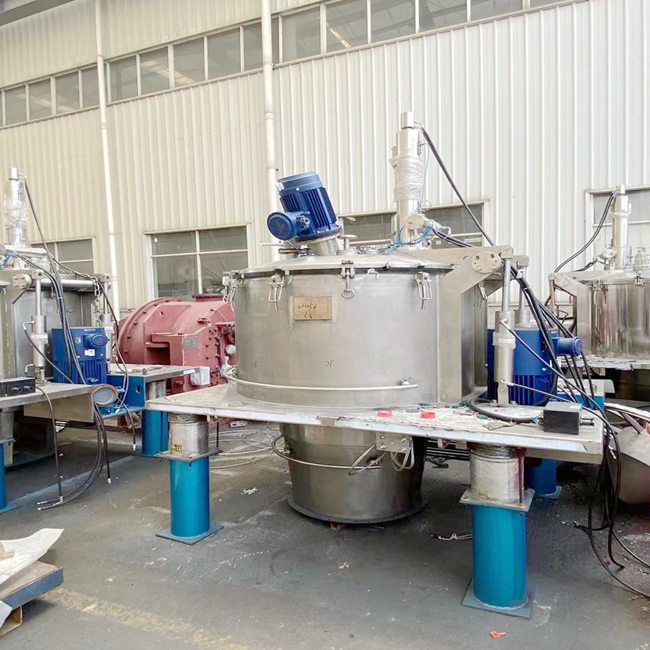

It adopts platform structure, with out shell welded with bottom plate. Shell cover is fixed to shell body with flange. Hydraulic pressure is applied to open the cover. Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.. Standard flanges are applied for the external pipe joints.

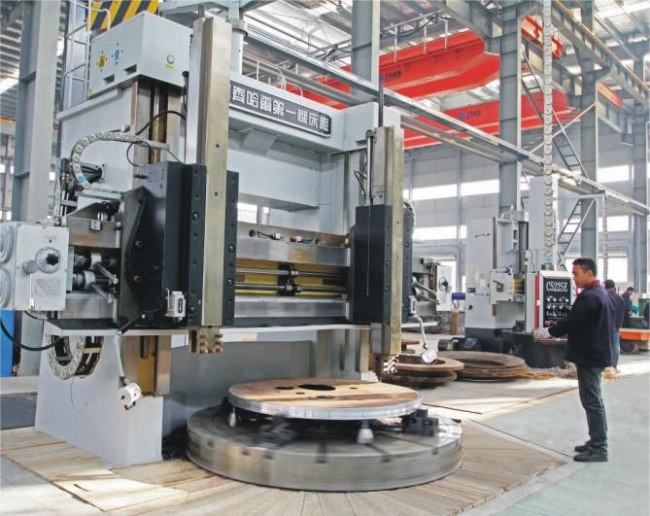

Processing equipment
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
