Industrial Stainless Steel Doubled Sided Dimple Jacket Plate for Cooling of beer tanks
Brief introduction

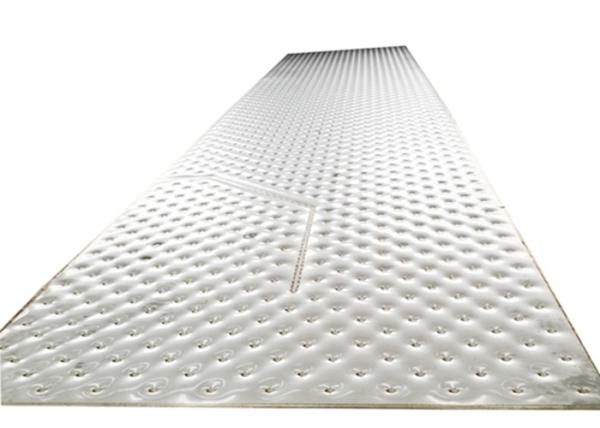

Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.
Specification
| Product Name | Pillow plate |
| Material | Stainless Steel |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| Grade | SUS201,SUS304,SUS316,TA2,Hastelloy |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
Plate type
Double-sided drum pressure, generally used as immersion heat exchange element.
Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.
Advantages
Advantages of pillow plates/dimple plates:
1. Less chance of leaks due to high quality welding.
2. Higher heat transfer coefficients at lower flow rates.
3. High efficiency in energy transfer/dimple patterns enable better flows resulting in high-energy efficiency.
4. Pillow plate is integrated in the structure,giving it extra strength.
5. According to the application any design is possible.
Advantages of laser welding a dimple jacket are:
1. Faster production with less material.
2. Very strong,reliable,constant high-quality welds.
3. Convenient for the welding of stainless steel,carbon steel,duplex,titanium and numerous other alloys.
4. Less deformation during welding,because of relatively low heat-input by the laser beam.
5. The inside of the tank is not affected.No rework needed,even the protective film can stay on during welding.
Certification
Company Profile
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
Tips:pillow plate heat exchanger design,pillow plate jacket,dimple jacket manufacturer
