Parameters
| Motor of oil pump(kw) | 5.5-7.5 | 22 | 13-30 |
| Main motor (kw) | 11-15 | 37-45 | 55 |
| Output (t/h) | 5-7 | 12 | 20 |
| Weight (kg) | 2600 | 4400 | 4860 |
| Operation temp. (°C) | Below 105 | Below 105 | Below 105 |
| Sieve slot | To be decided |
Product description

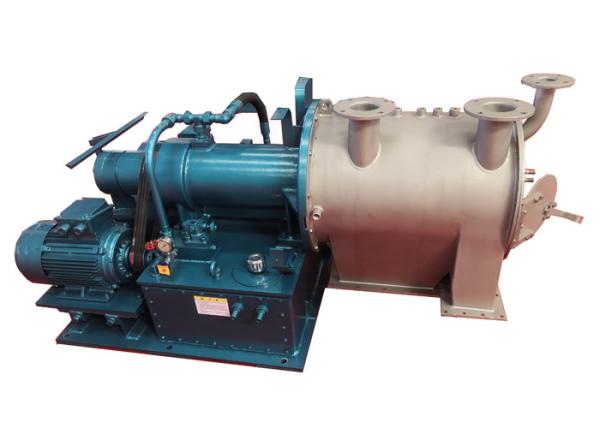

HR Series Double Stage Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.
The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.
Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor collecting casing where it will be discharged out of the machine.
The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .
The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed.
Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing canbe carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.
Quick skimming
Application: Sea salt and mineral salt dewatering
Advantages: Full automatic, large capacity
Bearing: Famous brand, such as SKF
Advanced technology: Sulzer
Separation effection: Moisture in the cake less than 4%
Certification
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
FAQ
1. HOW CAN WE VISIT YOUR FACTORY?
- IF YOU COME FROM ABORAD, AIR TO SHANGHAI OR NANJING AIRPORT, OR IF YOU ARRIVE SHANGHAI, YOU CAN TAKE BULLET TRIAN
- IF YOU COME FROM DOMESTIC CITY, AIR OR TRAIN DIRECTLY TO NANJING NAN OR WUXI EAST, WE WILL PICK YOU UP BOTH FROM AIRPORT OR
RAILWAY STATION
2. CAN WE VISIT YOUR END USER OR CONTACT THEM?
YES, WE WILL PROVIDE YOU THE NAME LIST, AND ARRANGE THE VISIT AFTER THEIR APPROVAL.
3. HOW DO YOU PROTECT THE QUALITY?
AS STATE OWNED ENTERPRISE WITH MORE THAN 100YEARS HISTORY, WE HAVE STRICT OPERATION POLICY,ADVANCED PROCESSING MACHINES TO
GUARANTEE THE PRECISION, WORKERS WITH OPERATION LICENSE, RELATED COMPONENTS ARE FROM WORLD FAMOUS BRAND, SERIES OF TEST AND
INSPECTION ARE DONE IN THE WHOLE PRODUCING STAGE.
4. WILL YOU DISPATCH TECHNICIANS FOR INSTALLATION AND COMMISSIONING?
YES, WE WILL UPON REQUIRED.
5. WHAT IS YOUR ADVANTAGE COMPARED WITH YOUR COMPETITORS?
QUALITY AND EXPERIENCE, WE ARE TOP CENTRIFUGE SUPPLIER IN CHINA,OUR DESIGNS AND STRUCTURES
ARE ANALOGOUS TO WORLD LEADER BRANDS.
6. IS YOUR PRICE COMPETITIVE?
MY PRICE IS NOT THE LOWEST IN CHINA, BUT WE PROMISE, FOR THE SAME QUALITY AND COLLOCATION, MY PRICE IS THE
MOST FAVORABLE, FOR THE SAME PRICE, MY QUALITY IS DEFINATELY SUPERIOR TO OTHER BRANDS
7. DO YOU HAVE OEM SERVICE? DO YOU SPPPLY THE PARTS?
YES, WE DO, AS LONG AS YOU PROVIDE US YOUR DRAWING AND DETAILED REQUIREMENTS
8. DO YOU SUPPLY SECOND HAND EQUIPMENTS?
NO, WE DON'T.
9. DO YOU HAVE AGENTS OR SERVICE CENTRE ABROAD?
WE HAVE SOME PARTERSHIP IN SEVERAL COUNTRIES AS INDONESIA, BRZIL, USA.
10. WHAT PAYMENT MODE YOU ACCEPT?
TT, AND LC AT SIGHT
