High quality plate heat exchanger stainless steel honey/dimple plate
Description
High quality plate heat exchanger stainless steel honey/dimple plate involves precision laser or spot welding of the two plates, ensuring a strong and leak-proof bond. The dimples are strategically placed on one or both sides of the plate, forming a pattern that maximizes the surface area available for heat transfer. The size, shape, and arrangement of the dimples can vary depending on the specific application and desired heat transfer characteristics.
Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished
Application
---Pharmaceutical manufacturing
---Refrigeration and cold storage facilities
---Waste heat recovery systems
---Process cooling and heating
---Solar thermal systems
What is technical overview?
| | |
| Material | SS304；SS306；other |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| | |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
| Thickness of two sheets |
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
What is advantage?
---Suitable for various operating conditions
---Compact size and space-saving
---Easy operation and maintenance
---Reduced operating temperatures of equipment
---Minimized overheating and condensation

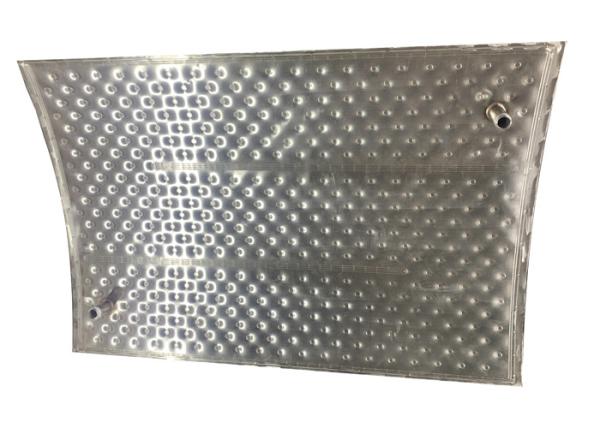

What is picture?
Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!
Tips:
Honeycomb jacketed reactor/fermenter；plate heat exchanger；evaporator；storage tank；condenser
